主要功能
● 動態監測根系的生長動態
● 長期監測根系的詳細結構（甚至土壤顆粒）
● 可以快速獲得不同深度的根系分布或土壤剖面圖像
● 定點、連續觀測根系在整個生長季中的動態變化
● 快速的掃描獲得高清的根系圖像
● 掃描軟件可以設置不同圖像格式（BMP、JPG、TIF和PNG）
● 對光源進行設置，滿足不同土壤環境下的掃描
● ICAP命名方式兼容不同分析軟件
● 分析軟可以快速的進行分析根系的相關參數（根長、周長、表面積、體積、根尖數、直徑等36個常用參數）
測量參數
● 根系長度、直徑、截面積、投影面積、根尖數等參數
● 獲取定位的不同時間季節、不同深度的根系分布或土壤剖面圖像數據
應用領域
廣泛應用在田間農作物根系研究、林木根系長期監測，水利工程（例如大壩）護坡草坪選種培育、古樹病蟲害的監測、草原的植被恢復與保護研究。
主要技術參數
● 工作環境：0℃～50℃,相對濕度0～100%RH（沒有水汽凝結）

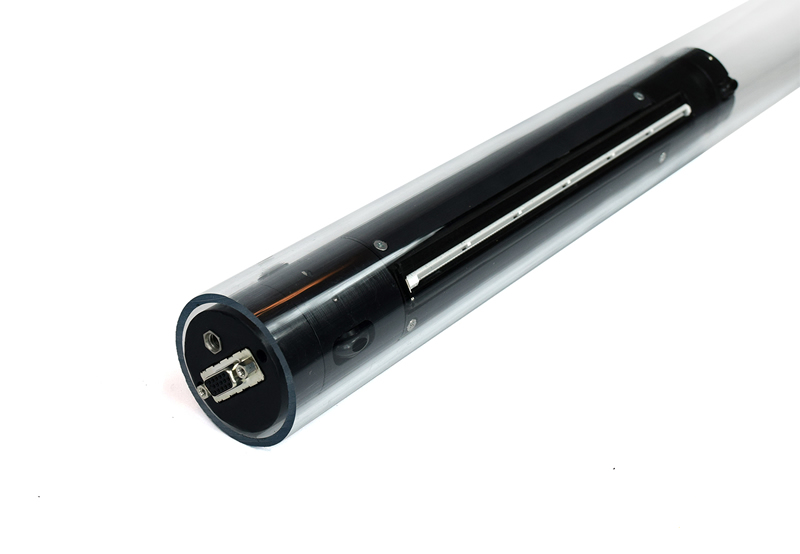

● *主機特點：柱型設計的360度旋轉光電耦合主機，可對根系和土壤狀態進行不變形的線性數據獲取
● 可獲得高至1200Dpi高清圖像
● 無損線性掃描
● 光學分辨率可選100、300、600、1200Dpi
● 電源：UMPC終端供電和軟件控制
● 接口：USB、WiFi或藍牙
● 數據存貯：直接存貯到數據處理終端
● *一次獲取數據尺寸：21.56cm×18.3cm
● 主機獲取速率：≥30秒（依據選擇不同Dpi）
● *主機探頭尺寸：35.9cm長×4.6cm（直徑）
● 控制盒尺寸：18 cm × 7.5 cm × 5 cm
● *主機：750g
根管
● 內徑：5.0cm
● 外徑：5.7cm
● 壁厚：3.2mm
● 長度：1m或2m
選購指南
主機、專業根系軟件、校準管、探桿、連接電纜、使用說明書、便攜式儀器箱
配置選項一
根系分析軟件系統

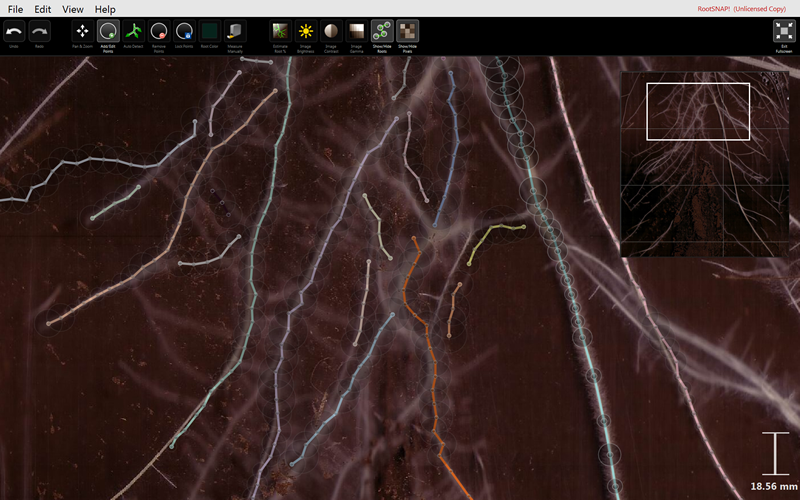

CI-690ROOTSNAP根系分析軟件系統

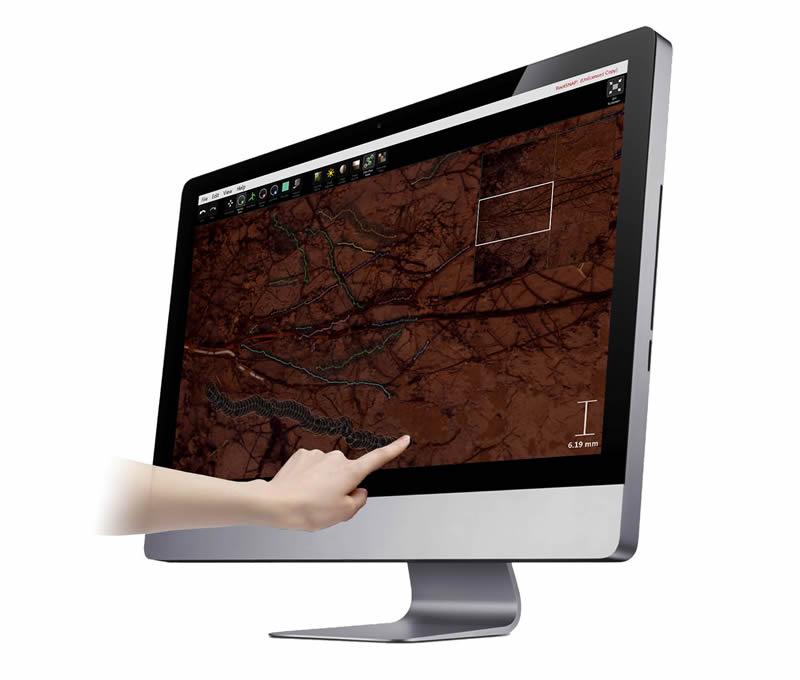

CI-690 RootSnap專業根系分析軟件安裝在觸摸屏的圖像數據處理終端上，可以非常方便的使用手指在根圖上劃過選擇根系（新型方式）或使用鼠標點擊選擇根(傳統方式)，RootSnap將自動擬合根生長的軌跡，包括調整根系軌跡弧度，根系角度研究，手指控制放大縮小圖像等。自動測量根的長度、直徑、表面積、體積等參數，還可以一鍵估算圖像中的總生物量。
功能
● 多點控制界面，優化觸屏功能
● 根長、面積、體積、直徑和分枝角的測量
● 平均根參數
● 在6秒內快速獲得根的軌跡
● 改善圖像品質
● 自動“Snap to Root”功能
● 綜合分析關鍵包
● 時間序列根圖分析
● 友好的用戶界面
配置選項二

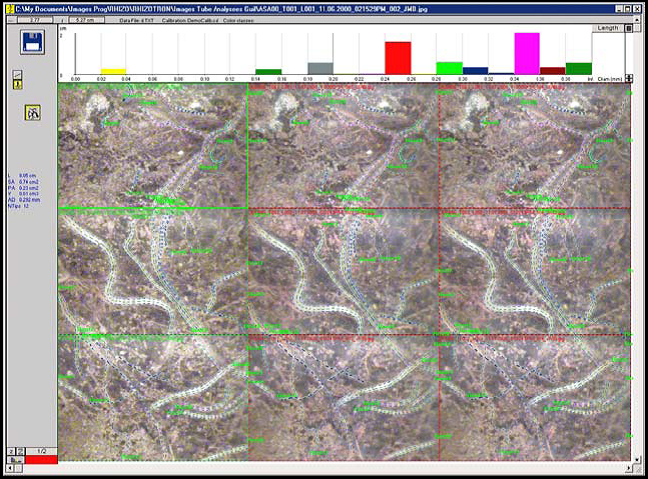

WinRHIZO Tron MF根系分析軟件
利用WinRHIZO Tron MF可以對CI-600獲取的根系圖像進行分析，可得到根系根長、表面積、投影面積、體積、平均根直徑和根尖數目等參數，監測根系時空生長變化。
產地：美國CID
參考文獻
原始數據來源：Google Scholar
1. L. N. B?ske et al., Applying minirhizotrons to observe spatiotemporal variations in rooting depth and distribution in agroecosystems to improve the performance of hydrological models. Vadose Zone Journal 24, e20382 (2025).
2. H. Zhou et al., Silicon drip fertigation improved sugar beet root and canopy growth and alleviated water deficit stress in arid areas. European Journal of Agronomy 159, 127236 (2024).
3. T. Zhang et al., Analysis of Leaf and Soil Nutrients, Microorganisms and Metabolome in the Growth Period of Idesia polycarpa Maxim. Microorganisms 12, 746 (2024).
4. J. Yuan, M. Peng, G. Tang, Y. Wang, Fine root production, mortality, and turnover in response to simulated nitrogen deposition in the subtropical Abies georgei (Orr) forest. Science of The Total Environment 923, 171404 (2024).
5. S. Uddin et al., Water use dynamics of dryland wheat grown under elevated CO2 with supplemental nitrogen. Crop and Pasture Science 75, - (2024).
6. Y. Tian et al., Improving cotton productivity and nitrogen use efficiency through late nitrogen fertilization: Evidence from a three-year field experiment in the Xinjiang. Field Crops Research 313, 109433 (2024).
7. C. Tardivo, L. Archer, L. Nunes, F. Alferez, U. Albrecht, Root System Reductions of Grafted ‘Valencia’ Orange Trees Are More Extensive Than Aboveground Reductions after Natural Infection with Candidatus Liberibacter Asiaticus. HortScience 59, 595-604 (2024).
8. Y. Song et al., Regulatory effects of non-growing season precipitation on the community structure, biomass allocation, and water-carbon utilization in a temperate desert steppe. Journal of Hydrology 634, 131112 (2024).
9. I. Rog et al., Increased belowground tree carbon allocation in a mature mixed forest in a dry versus a wet year. Global Change Biology 30, e17172 (2024).
10. M. Piecha et al., Plant roots but not hydrology control microbiome composition and methane flux in temperate fen mesocosms. Science of The Total Environment 940, 173480 (2024).
11. L. Jia et al., Contrasting depth-related fine root plastic responses to soil warming in a subtropical Chinese fir plantation. Journal of Ecology n/a, (2024).
12. W. Huh et al. (Research Square, 2024).
13. S. Huai et al., Short-Term Effects of Incorporation Depth of Straw Combined with Manure During the Fallow Season on Maize Production, Water Efficiency, and Nutrient Utilization in Rainfed Regions. Agronomy 14, 2504 (2024).
14. C. Guo et al., Adaptive strategies in architecture and allocation for the asymmetric growth of camphor tree (Cinnamomum camphora L.). Scientific Reports 14, 22604 (2024).
15. R. S. de Oliveira et al., Survey and genomic characterization of Serratia marcescens on endophytism, biofilm, and phosphorus solubilization in rice plants. Environmental Science and Pollution Research 31, 65834-65848 (2024).
16. N. B. Costa et al., Beneficial bacteria mitigate combined water and phosphorus deficit effects on upland rice. Plant and Soil, (2024).
17. W. Bieluczyk et al., Fine root production and decomposition of integrated plants under intensified farming systems in Brazil. Rhizosphere 31, 100930 (2024).
18. T. Banet, A. G. Smith, R. McGrail, D. H. McNear Jr., H. Poffenbarger, Toward improved image-based root phenotyping: Handling temporal and cross-site domain shifts in crop root segmentation models. The Plant Phenome Journal 7, e20094 (2024).
19. G. Azam, K. Wickramarachchi, C. Scanlan, Y. Chen, Deep and continuous root development in ameliorated soil improves water and nutrient uptakes and wheat yield in water-limited conditions. Plant and Soil, (2024).
20. A. A. Atta, K. T. Morgan, S. A. Hamido, D. M. Kadyampakeni, Irrigation optimization enhances water management and tree performance in commercial citrus groves on sandy soil. Irrigation Science, (2024).
21. A. Atta, K. Morgan, S. Hamido, D. Kadyampakeni, Irrigation optimization enhances water management and tree performance in commercial citrus groves on sandy soil. (2024).
22. J. Arnhold et al., Minirhizotron measurements can supplement deep soil coring to evaluate root growth of winter wheat when certain pitfalls are avoided. Plant Methods 20, 183 (2024).
